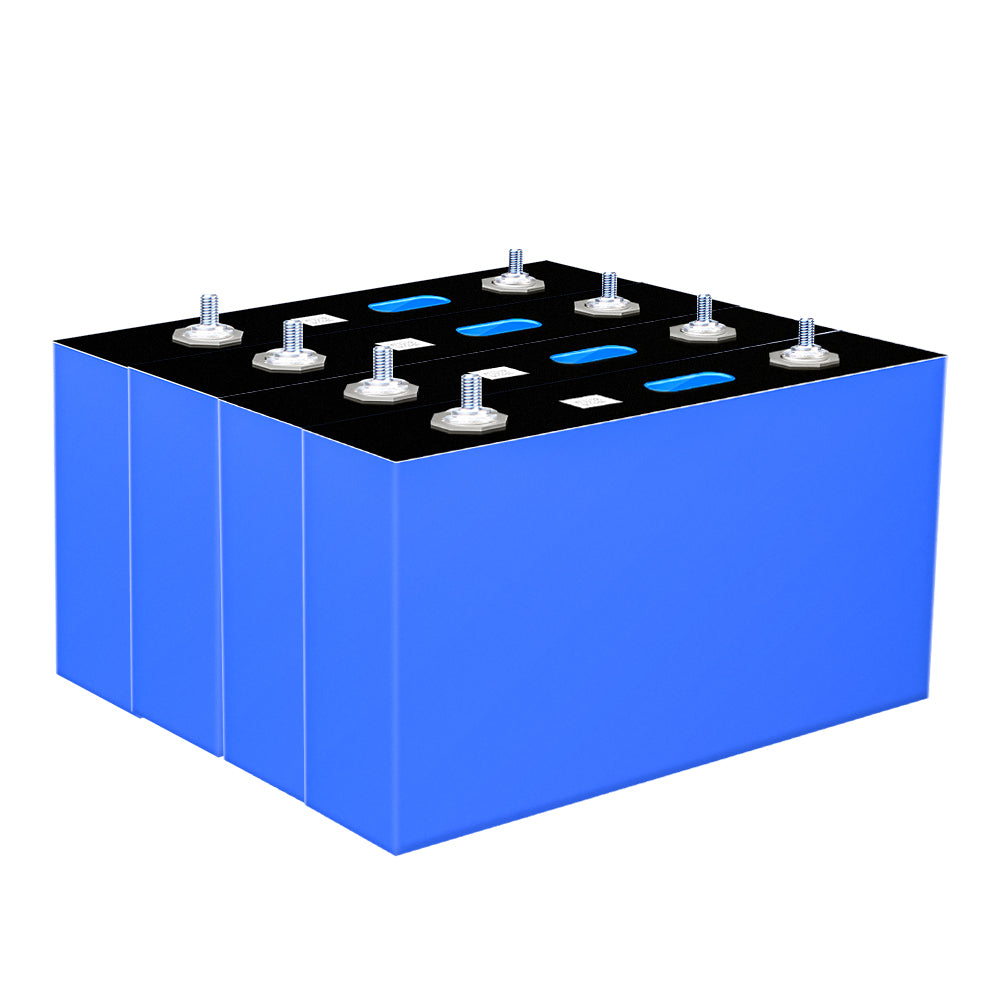

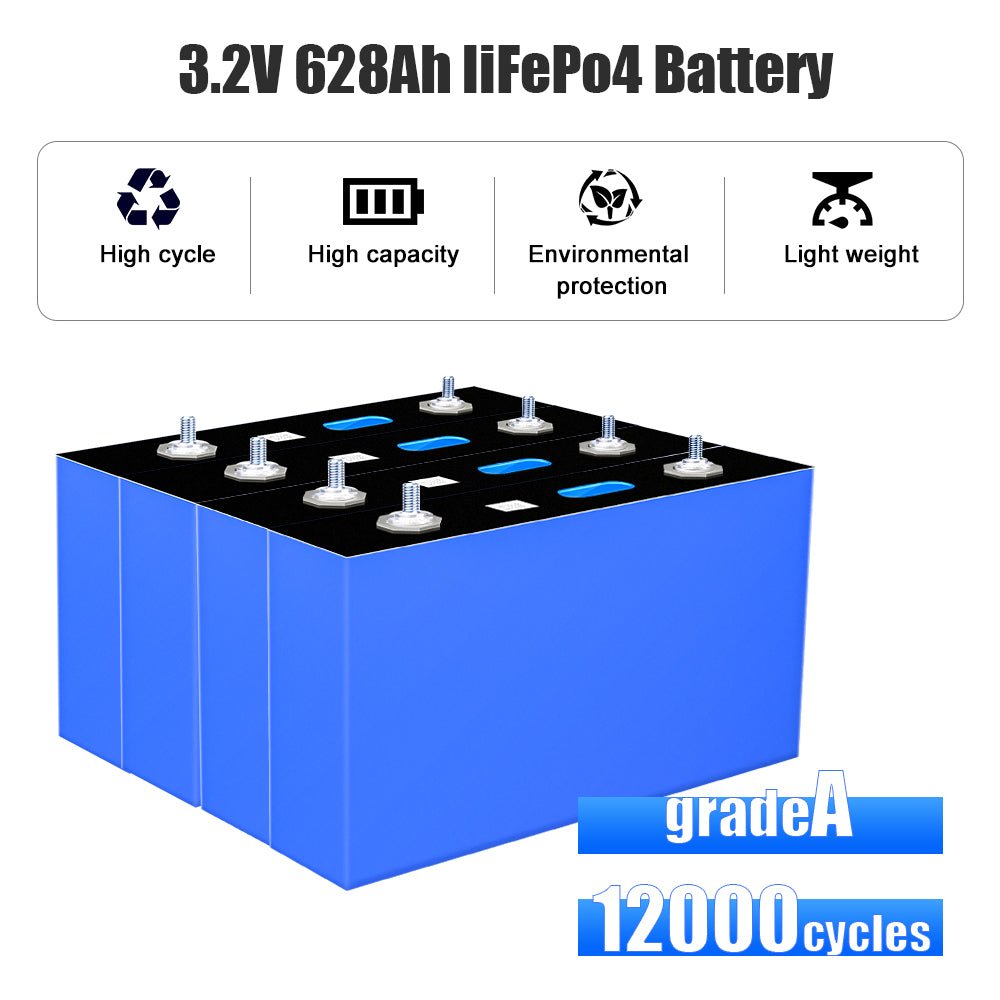

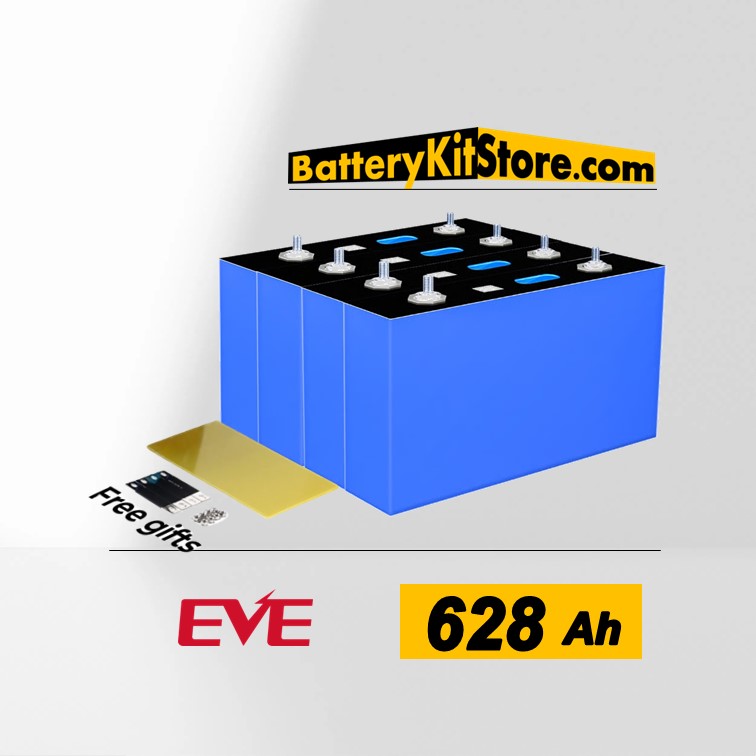

EVE MB56 628Ah LiFePO4 Battery Cell

I. Product Overview

The EVE MB56 3.2V 628Ah LiFePO4 Battery is a high - performance, large - capacity energy storage product designed to meet the demanding needs of various applications. As an original Grade A battery, it offers excellent quality and safety. Whether it's for powering electric vehicles, providing backup power for homes, or supporting industrial energy storage systems, this battery delivers reliable and long - lasting energy. With its advanced technology and strict quality control, it ensures stable operation in different environments, making it a trustworthy choice for those seeking efficient energy storage solutions.

II. Product Parameters and Specifications

Core Technical Data

Model: EVE MB56 628Ah LiFePO4 battery cell

Nominal Voltage: 3.2V (provides a stable voltage output, suitable for a wide range of devices and systems that require 3.2V power supply).

Standard Capacity: 628Ah (high capacity allows for long - term energy storage and supply, meeting the needs of energy - intensive applications).

Weight: 11500g±300g (the weight is carefully designed to balance portability and stability, making it easy to install in various setups).

Size: 352.371.7207.2mm (compact dimensions enable flexible installation in different spaces, whether in vehicles, cabinets, or outdoor setups).

Charge Voltage: 3.65±0.05V (optimized charge voltage ensures efficient and safe charging, minimizing charging time and maximizing battery life).

Cut - off Voltage: 2.0±0.05V (prevents over - discharge, protecting the battery and the connected devices).

Internal Resistance: 0.10±0.05mΩ (low internal resistance reduces energy loss during charging and discharging, improving overall system efficiency).

Standard Charging Current: 0.5C (reasonable charging current ensures a stable charging process without damaging the battery).

Standard Discharge Current: 0.5C (enables a steady discharge, providing consistent power to the load).

Max Charge Current: 1C (allows for fast charging when needed, meeting the requirements of time - sensitive applications).

Max Continuous Discharge Current: 1C (can handle high - power discharge scenarios, ensuring the battery can support peak loads).

Charging Temperature: 0℃ - 60℃ (can be charged in a relatively wide temperature range, suitable for different climatic conditions).

Discharging Temperature: - 30℃ - 60℃ (ensures reliable discharge performance in both extremely cold and hot environments).

III. Standard Configuration and Core Components

Core Components

Original Grade A Cells: The use of Grade A cells guarantees high performance, long cycle life, and stable energy output. These cells are manufactured with strict quality control to ensure consistency and reliability.

High - Quality Accessories

Internal Copper Material: The internal components are made of copper, which has excellent electrical conductivity. This helps in minimizing energy loss and ensuring efficient power transfer.

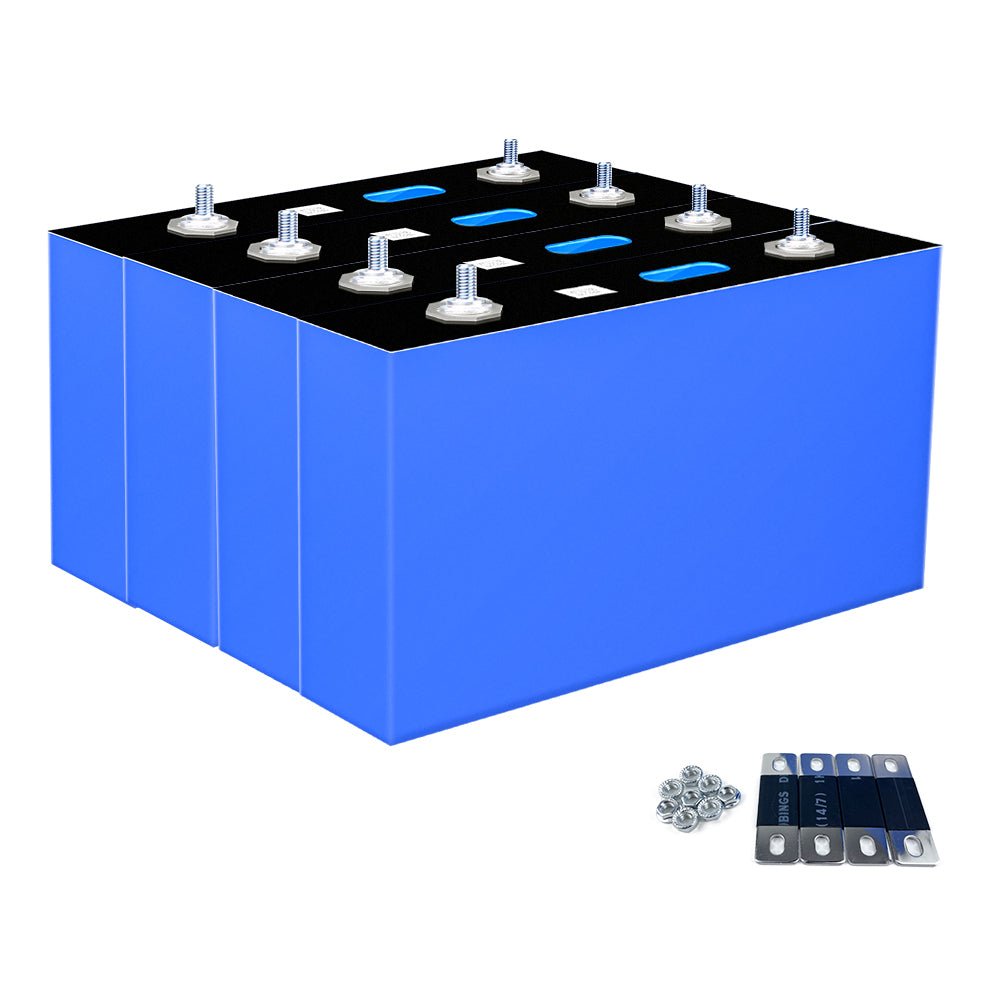

Nickel - Plated Outside: The nickel plating on the outside of the accessories provides good anti - oxidation properties, enhancing the stability and service life of the components. For example, the M6 flange nut is designed to be durable and not easy to oxidize, ensuring a secure connection.

IV. Product Advantages

1. Exceptional Safety Performance

Passed Multiple Tests: The battery has successfully passed tests such as over - charge, over - discharge, short - circuit, acupuncture, squeeze, and drop tests, with no explosion or fire incidents. This proves its high safety level, making it suitable for use in various environments, including those with potential risks.

2. Long Cycle Life and High Capacity

Long Cycle Life: With more than 12000 cycles, the battery has a much longer service life compared to traditional lead - acid batteries (which typically have around 300 cycles). This significantly reduces the need for frequent battery replacement, saving costs in the long run.

High Capacity: The 628Ah capacity provides ample energy storage, enabling it to support long - term operation of devices or systems without frequent recharging.

3. Environmental Protection and Lightweight

Environmental Protection: LiFePO4 batteries are more environmentally friendly compared to lead - acid batteries. They do not contain harmful substances and are easier to recycle, aligning with sustainable development goals.

Lightweight: Weighing only 1/3 of lead - acid batteries with the same capacity, it is easier to transport and install, reducing the burden on equipment and installation structures.

4. Wide Application Range

Versatile Applications: The battery is applicable to a variety of fields, including electric buses, electric forklifts, electric cars, steamships, patrol cars, RVs, home power reserves, and communication backup power. Its reliable performance and wide temperature adaptability make it a suitable choice for different application scenarios.

Choose the EVE MB56 3.2V 628Ah LiFePO4 Battery for your energy storage needs. With its high capacity, long cycle life, excellent safety performance, and wide application range, it provides a reliable and efficient energy solution. Whether you are looking to power your electric vehicle, secure your home's backup power, or support industrial operations, this battery is ready to deliver.

Note: For custom solutions, bulk orders, or technical inquiries, please contact our professional team to get personalized support for your energy projects.
