HAKADI Battery Box DIY Kits With JK BMS For 16S LiFePO4 48V 51.2V 280Ah-314Ah
Ideal For Solar System Installers and DIY Lovers
$519.90

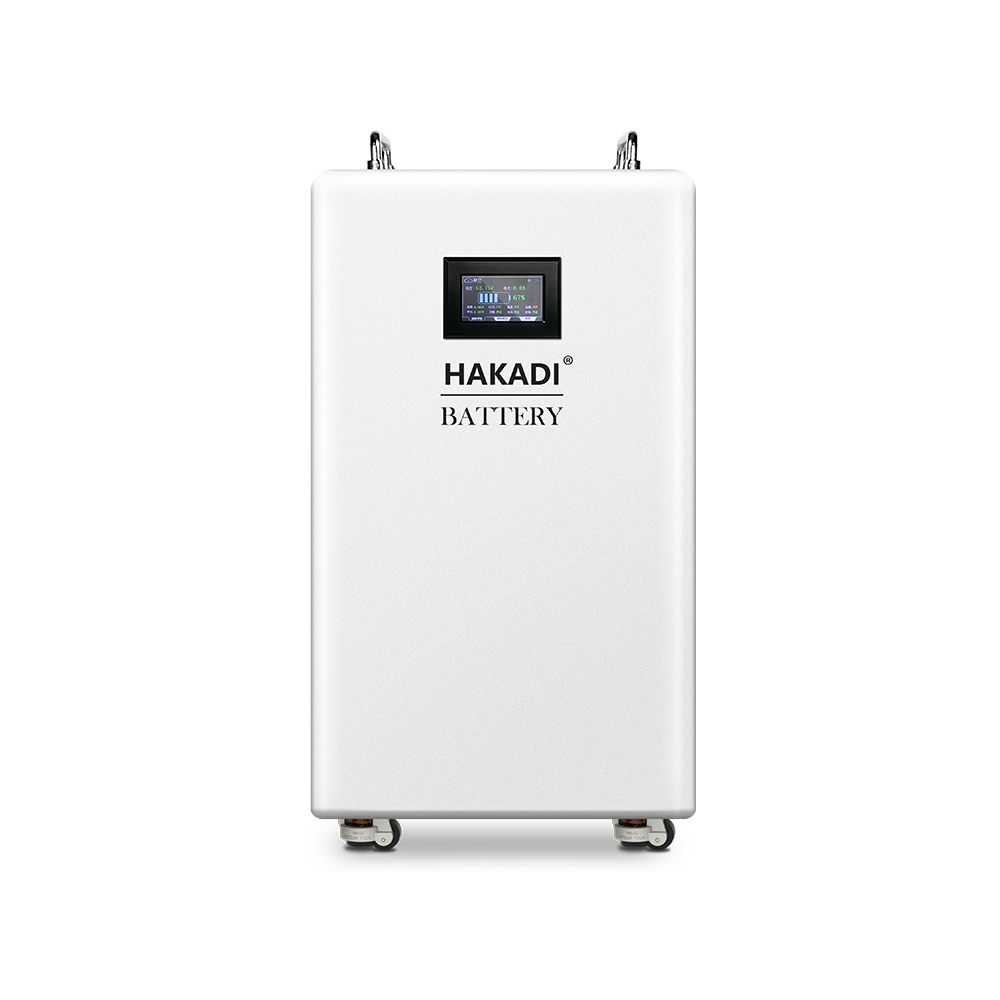

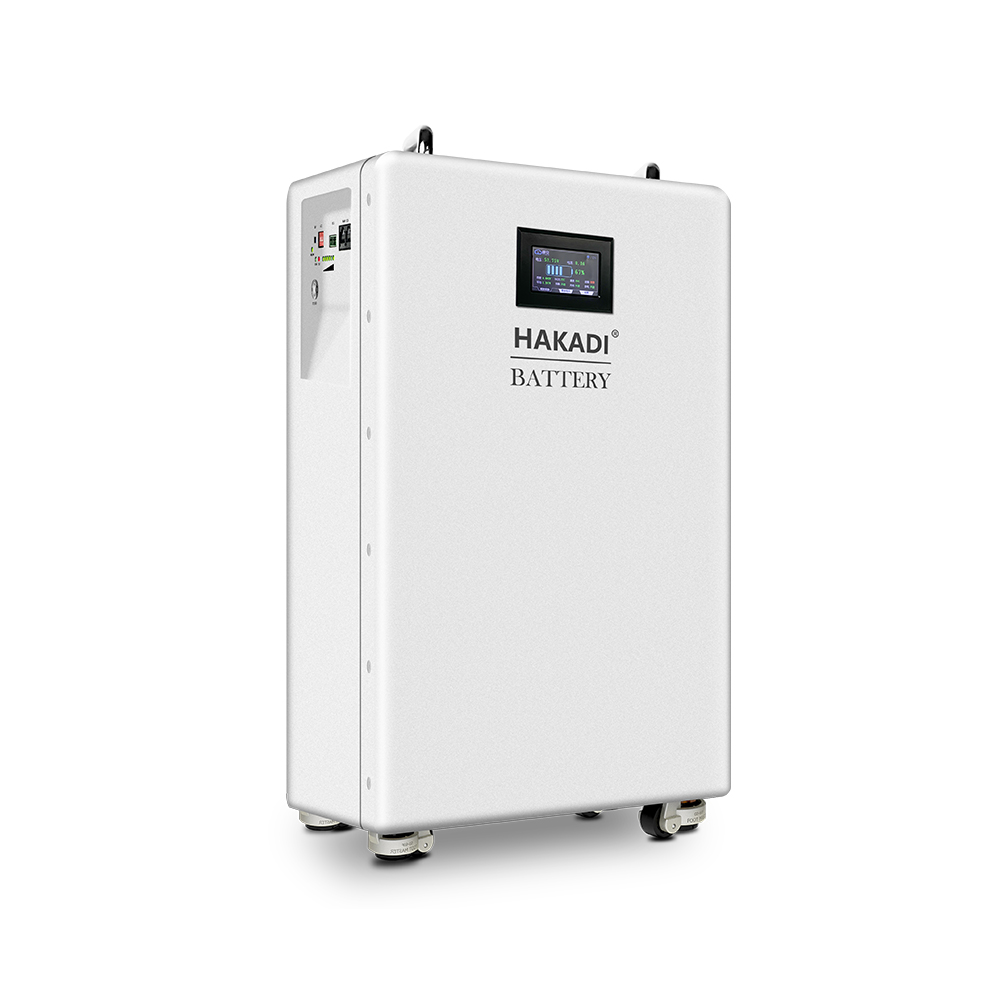

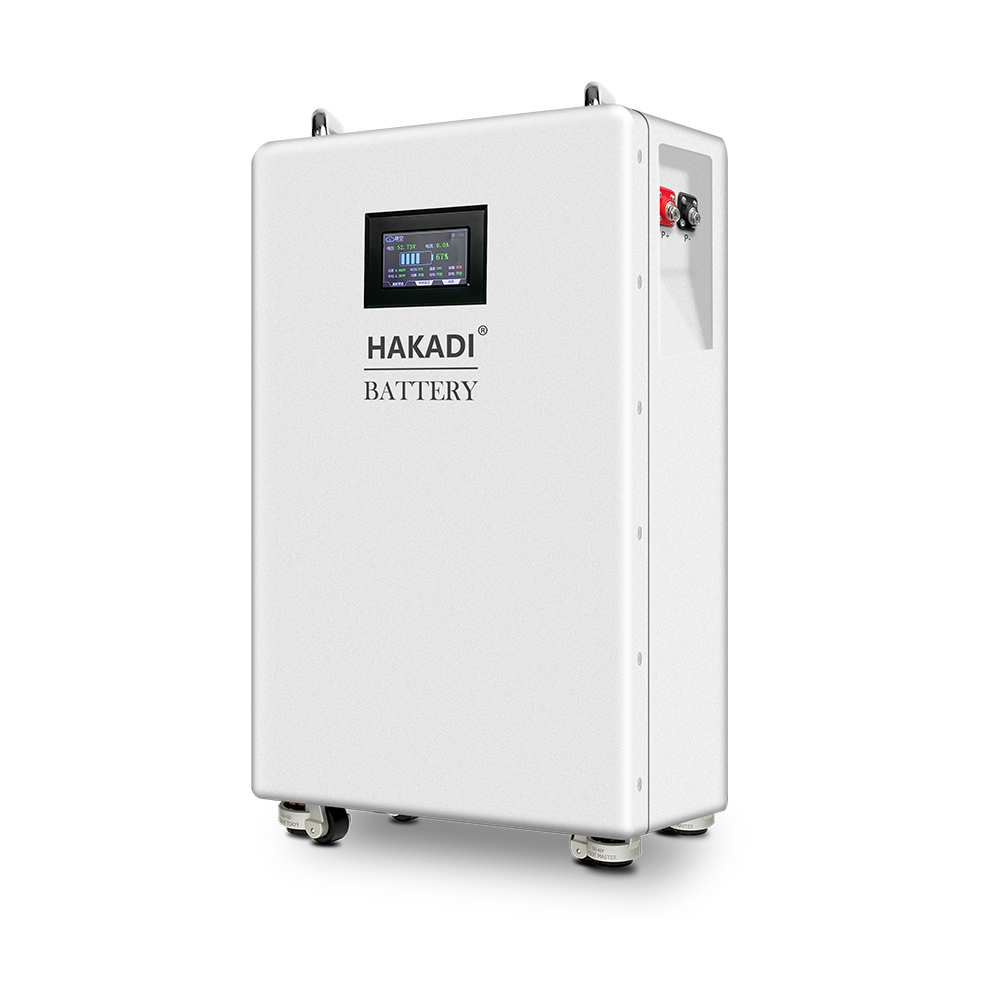

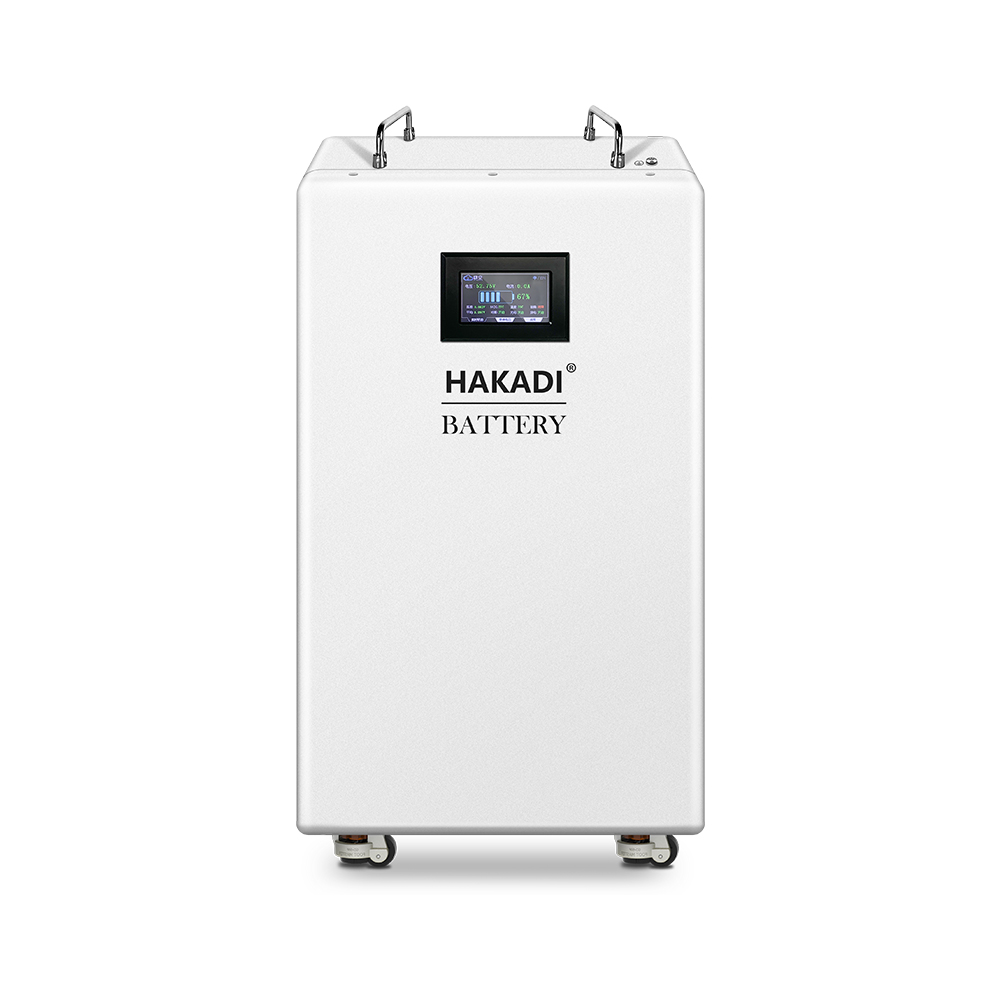

HAKADI 48V LiFePO₄ Battery Box with JK 200A BMS
16S DIY Kit for 280–314Ah Prismatic Cells – Solar-Ready, Wheel-Mounted, 5-Year Warranty
I. Product Overview
Turn loose cells into a rolling 16kWh power wall in 30 minutes.
The HAKADI 48V Battery Box is a “mechatronic” kit that accepts any 16 × 280–314 Ah LiFePO₄ prismatic cells and delivers a certified-looking, IP65-rated energy storage cabinet.
Built around the JK-PB2A16S-200P BMS (200A continuous, 2A active balance, CAN/RS485 + Bluetooth) the system is pre-wired for plug-and-play parallel expansion—up to 14 boxes for >225kWh.
Stainless-steel shell, four lockable wheels, and pre-cut copper busbars mean you can wheel it from garage to boat dock, bolt it to a solar rack, or rack-stack it in a telecom hut—no machining, no welding, no guess-work.

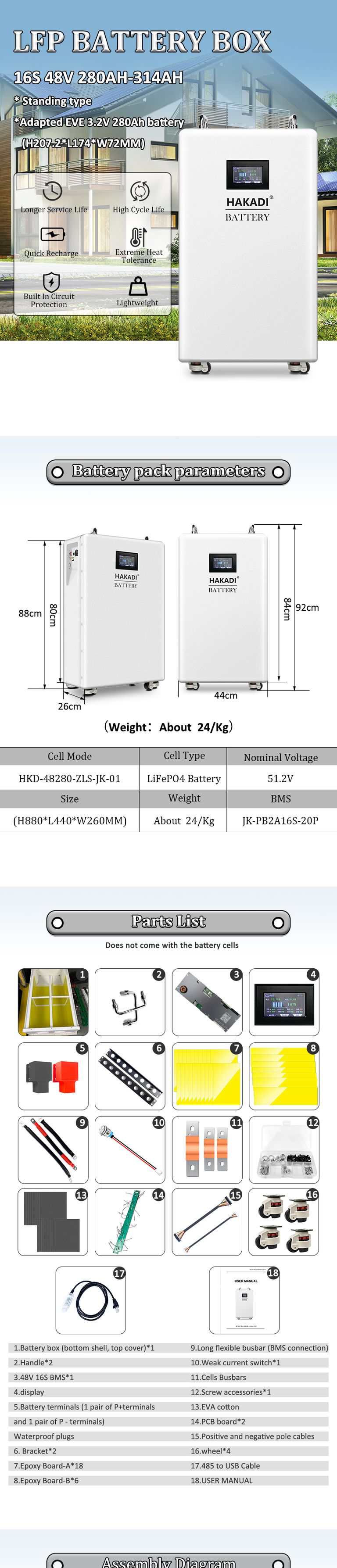

II. Product Parameters and Specifications
Model No.: HKD-48280-ZLS-JK-01
Cell Format: 16S (48V class), 280 / 302 / 304 / 314Ah prismatic LiFePO₄
Nominal Voltage: 51.2V
Energy Window: 14.3 – 16.1kWh (cell dependent)
Continuous Current: 200A (≈10kW @ 51V)
Peak Current (30s): 300A
Parallel Stack: up to 14 units (≈225kWh, 2.8kA)
Balancing: JK active 2A per cell
Com-Ports: CAN-bus, RS485, Bluetooth (free app)
Enclosure: 1.2mm stainless, standing type, IP65 gasketed
Dimensions: 880 × 440 × 260mm (34.6" × 17.3" × 10.2")
Empty Weight: 29kg (64lb) – ready to roll
Operating Temp: Charge 0 – 50°C / Discharge –20 – 60°C
Storage Temp: –30 – 45°C (50% SOC)
Cycle Life Target: ≥6,000 (80% DOD, 25°C, 0.5C)
Calendar Life: 15 years
Warranty: 5 years on box & BMS (cells carry cell-manufacturer warranty)
Certifications: CE, RoHS, UN38.3 (BMS)
III. Standard Configuration and Core Components
(Battery cells NOT included – everything else ships in one box)
Stainless battery box – bottom shell & IP65 top cover pre-drilled
Fold-down handles × 2
JK-PB2A16S-200P 200A BMS with 2A active balance & Bluetooth
3.5" LCD display – volts, amps, SOC, temp
Waterproof battery terminals – 1 pair P+, 1 pair P– with rubber seals
Internal cell brackets × 2 – slide-in, tool-less
Epoxy boards-A × 18 – fire-proof cell dividers
Epoxy boards-B × 6 – side insulation shields
Flexible copper busbar + sense-wire harness – plugs straight into JK BMS
Weak-current switch – isolates display & logic for long-term storage
Nickel-plated copper cell busbars – laser-cut 2 × 10mm
Stainless M6 screw kit – bolts, washers, nylocs, all counted
EVA foam strips – shock, vibration & thermal pad
PCB insulation spacers × 2 – keep BMS cool & isolated
4 AWG positive/negative cables – 1 m, 8 mm lugs, 200A rated
Heavy-duty wheels × 4 – two lockable, gravel friendly
USB ↔ RS485 cable – firmware updates & data export
Full-color assembly manual – QR codes to video guide & JK app

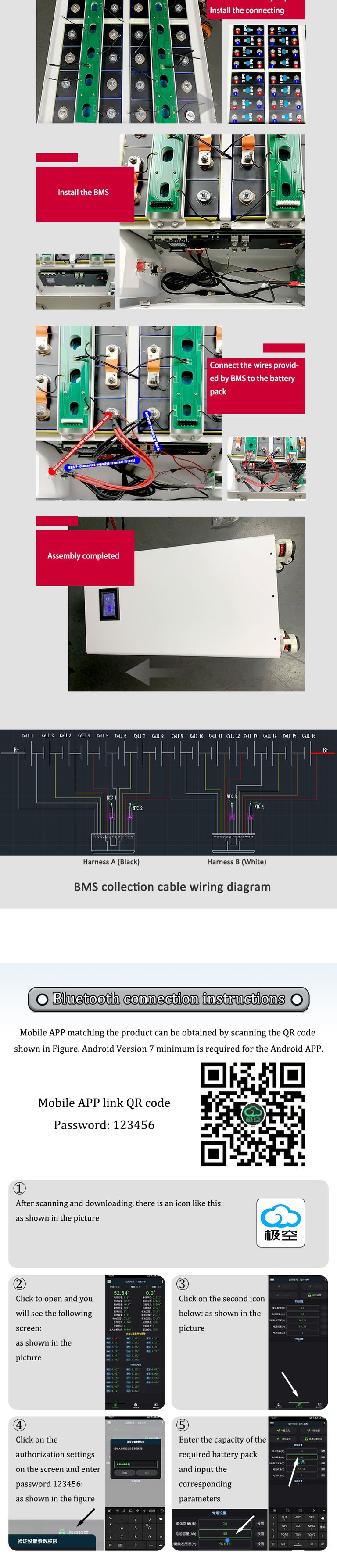

Bluetooth App:
Android/iOS – search “JK BMS” – real-time cell voltage, temp, alarm push, CSV export, OTA updates.
IV. Product Advantages
Inverter-Ready Out of the Box

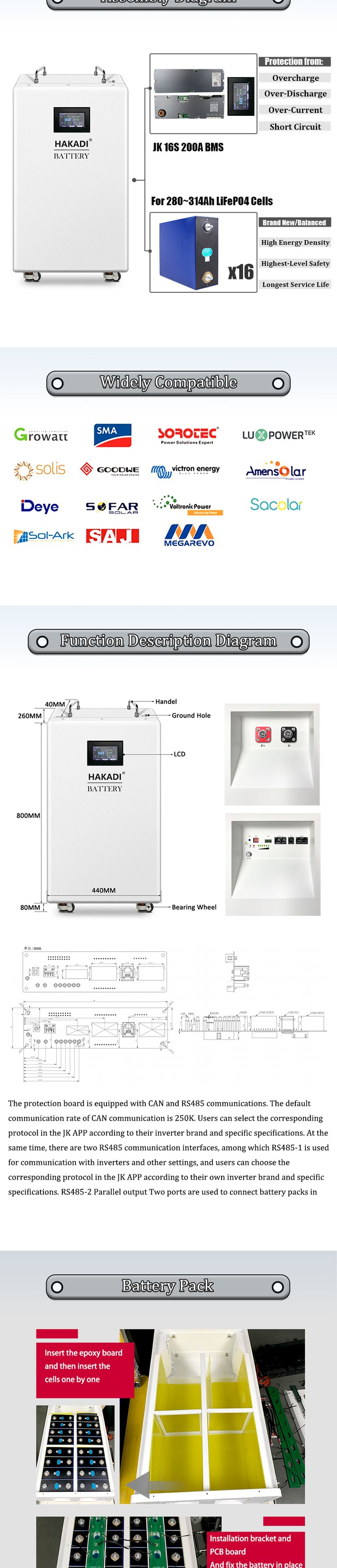

Pre-loaded CAN & RS485 profiles for Victron, SMA, Solis, Deye, Growatt, Goodwe, Sol-Ark, MEGAREVO, etc.True 200A Continuous & 300A Peak
Run 10kW inverters at 100 % load or start 15kVA motors without voltage sag or BMS over-temp.2A Active Balance + ≤5mV Delta
Maintains cell-to-cell mismatch <5mV through 6,000+ cycles, retaining ≥80% capacity.Scale to 225kWh
Plug up to 14 boxes in parallel via CAN-bus auto-addressing – no external paralleling board needed.Stainless + IP65 + Wheels
Dust-tight, salt-spray resistant, and rollable – garage, RV, boat deck or telecom hut, indoors or out.30-Minute DIY Build
Every hole, busbar and sense wire pre-positioned – only a 10 mm wrench and Phillips screwdriver required.5-Year Store Warranty
Ships same day from BatteryKitStore.com US & EU warehouses, 30-day hassle-free returns, lifetime tech-chat support.
Click “Add to Cart” and roll your own 16 kWh lithium bank this weekend—power your solar, EV or off-grid life with HAKADI & BatteryKitStore.com!
